Product Details

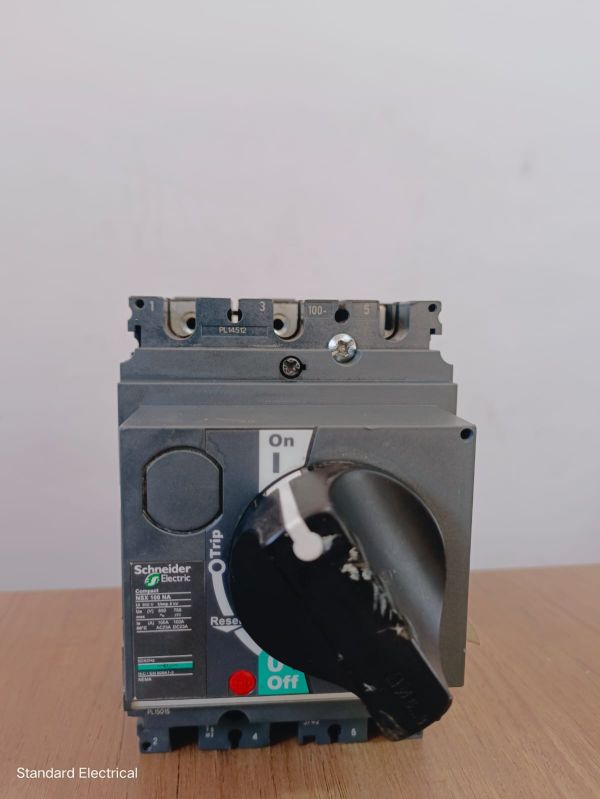

Brand: Schneider Electric
Series: ComPacT NSX
Model: NSX100 NA (Part No. LV429629)
Type: Switch Disconnector (Isolator)
Poles: 3 Pole
Rated Current: 100 Amps
Condition: Refurbished & Fully Tested
Supplied By: Standard Machinery
Application: Ideal for industrial power distribution, motor control centers, and electrical panels
Key Features:
Designed for reliable isolation of electrical circuits
Complies with IEC 60947-3 standards
Compact design for space-saving installations
Suitable for both AC and DC applications
Front-mounted toggle for easy operation
Robust construction ensuring long service life
Technical Specifications:
Rated Operational Voltage (Ue): Up to 690V AC (50/60 Hz)
Rated Insulation Voltage (Ui): 800V AC
Rated Impulse Withstand Voltage (Uimp): 8 kV
Conventional Free Air Thermal Current (Ith): 100A at 60°C
Short-Circuit Making Capacity (Icm): 330 kA with upstream protection
Mounting: Fixed
Dimensions (H x W x D): 161 mm x 105 mm x 86 mm
Weight: Approximately 1.8 kg
Standards & Certifications:
IEC 60947-3
KEMA
ASEFA
ASTA
Environmental Conditions:
Operating Temperature: -25°C to +70°C
Storage Temperature: -50°C to +85°C
Availability: In Stock
MOQ: 1 Unit
Shipping: Worldwide delivery available
